AC Filter Metallized Polypropylene Film Capacitor
High harmonic absorbing, high reactive power and good stability of capacitance. High-performance AC filtering capacitors used in AC-filter circuit for UPS systems, welding equipment, and tuned passive filtering
Film Capacitors Parameter Table
| AC Filter | CFB Series | CFD Series | CFE Series | CFR Series |
|---|---|---|---|---|
| Min-uf | 8 | 3X20 | 0 | 0.1 |
| Max-uf | 350 | 3X500 | 0 | 40 |
| Min-V(AC) | 250 | 400 | 0 | 250 |
| Max-V(AC) | 450 | 1000 | 0 | 500 |

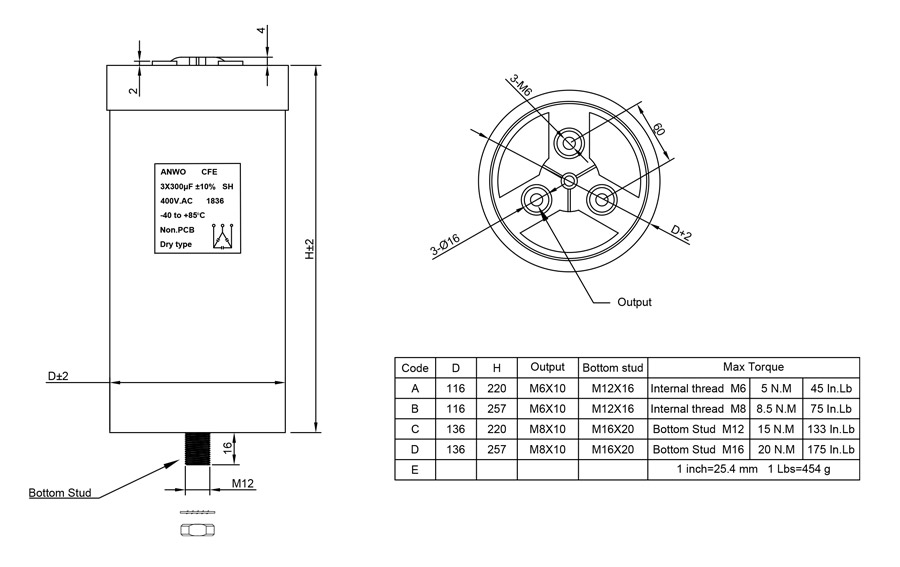

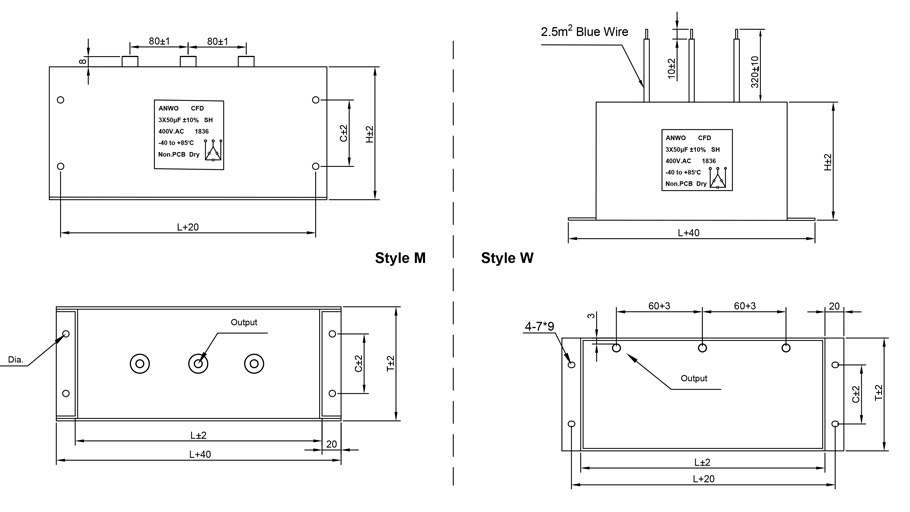

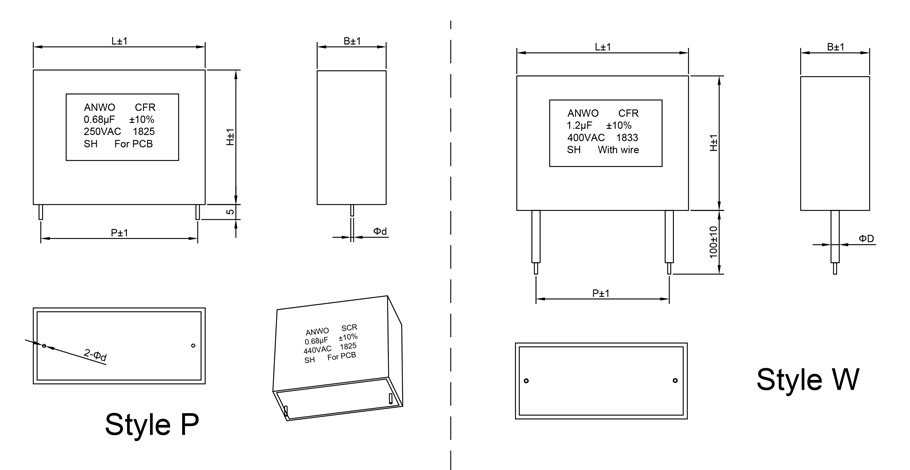

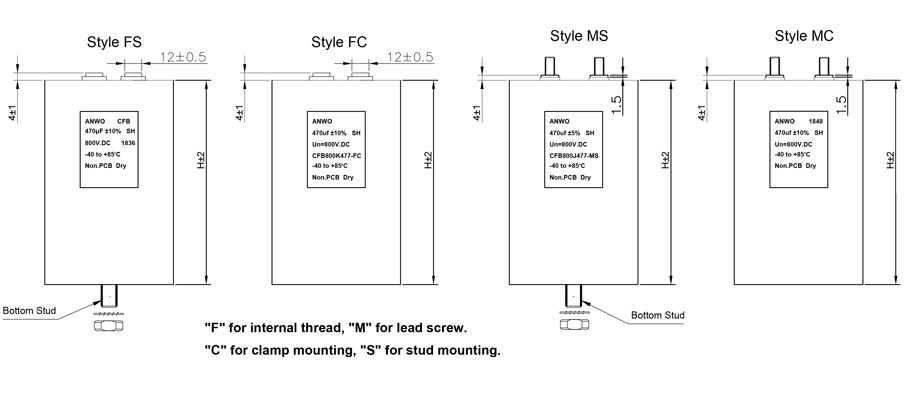

Film Capacitors Outline Drawing
